Scope of application:

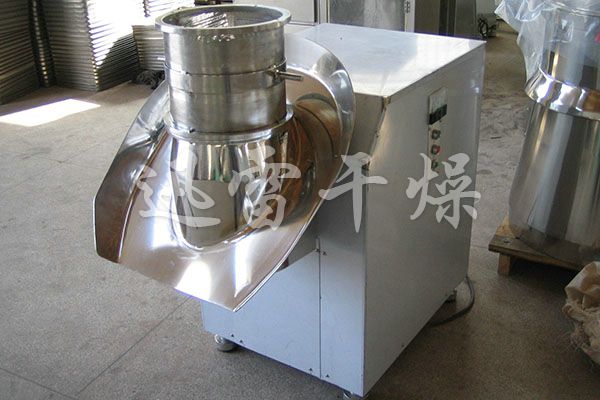

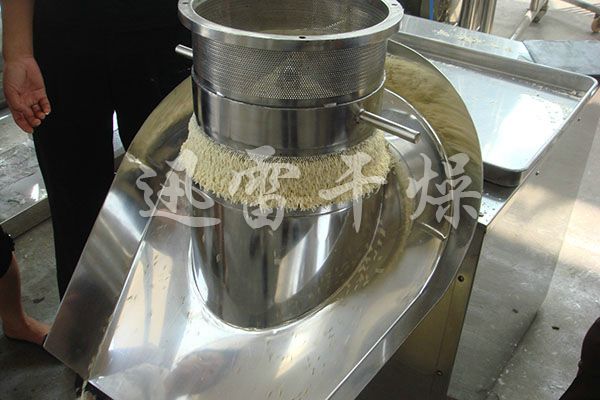

This machine is used in pharmaceutical, food, granules, chemicals, solid beverage and other industries to make the stirred materials into the required granules. It is especially suitable for materials with high viscosity.
Performance characteristics
All parts of this machine that are in contact with the material are made of stainless steel. It has beautiful appearance, reasonable structure, high granulation forming rate, beautiful particles, automatic discharging, avoiding particle damage caused by manual discharging, and is suitable for flow operations.
Technical specifications
| Grinding knife size(mm) | 250 | 300B | 300D |
| Particle diameter(mm) | Φ2-2.2 (can be based on user needs) | Φ1.2-3 (can be based on user needs) | 0.5-6 (can be based on user needs) |
| Overall dimensions(mm) | 700×540×1300 | 880×640×1300 | 1300×800×1200 |
| Motor power(kw) | 3 | 4 | 7.5-6 |
| Weight(kg) | 350 | 400 | 780 |
| Production capacity(kg/h) | 100-200 | 140-400 | 300-600 |
Note: Due to differences in materials, the output in the table is for reference only.
