Working principle:

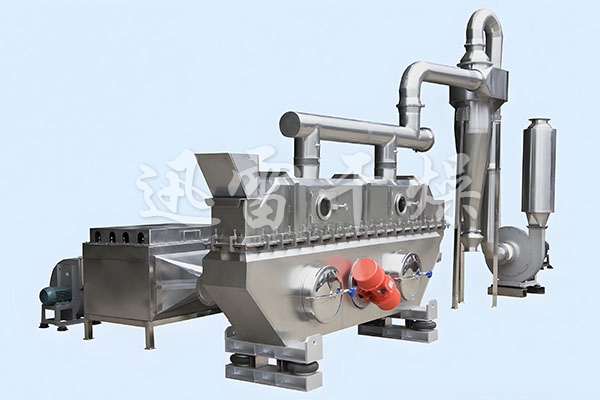

The material enters the machine from the feeding port, and under the action of vibration force, it is thrown along the horizontal fluidized bed, continuously moving forward. The hot air passes through the fluidized bed and exchanges heat with the wet material. The wet air is removed by the cyclone separator and discharged from the exhaust port, while the dry material is discharged from the exhaust port.

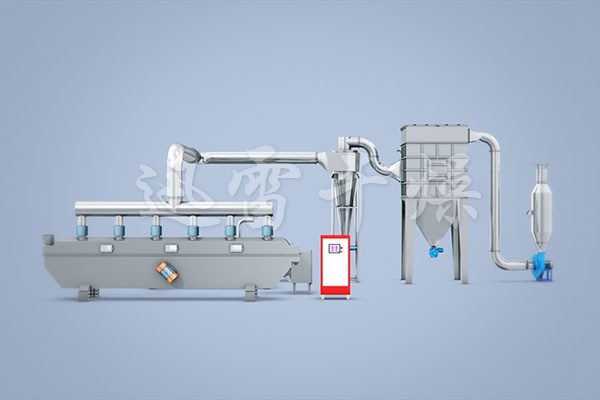

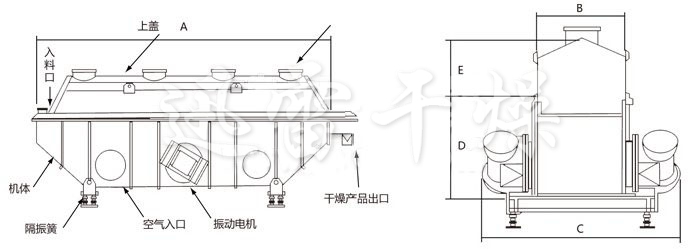

Structural schematic diagram:

Main purpose:

◆ Pharmaceutical and chemical industries: various tablet granules, boric acid, borax, hydroquinone, malic acid, maleic acid, etc.

◆ Food and building materials: wine troughs, monosodium glutamate, sugar, salt, slag, Douban, seeds, etc.

◆ It can also be used for material cooling, humidification, etc.

Product features:

● The material is heated evenly, with sufficient heat exchange and high drying intensity, saving about 30% energy compared to ordinary dryers.

● The vibration source is driven by a vibration motor, which runs smoothly, is easy to maintain, has low noise, and has a long service life.

● Fluidization is stable, with no dead corners or blowing through phenomena.

● Good adjustability, adaptable to a wide range of surfaces, the thickness of the material layer, and the speed of movement inside the machine can be infinitely adjusted with amplitude changes.

● Small surface damage to materials, suitable for drying fragile items, and does not affect work efficiency even when the particles are irregular.

● Adopting a fully enclosed structure effectively prevents cross contamination between materials and air, resulting in a clean working environment.

● When used for mass production of high moisture materials, multiple units can be connected in series to meet user requirements (typical materials: such as polyacrylamide, etc.).

Animation flowchart:

Technical parameter table:

Note: Some parameters may be adjusted according to different materials during design, and the design shall prevail.

Video:
