Product Overview

This unit is a device that can complete drying and granulation at the same time. The pressure, flow rate and size of the nozzle holes of the feed liquid pump can be adjusted according to the process requirements to obtain the required spherical particles in a certain size ratio.
The working process of this unit is that the material liquid is input at high pressure through the diaphragm pump, spraying out mist droplets, and then falling in parallel with the hot air. Most of the powder particles are collected by the discharge port at the bottom of the tower, and the exhaust gas and its tiny powder are separated by the cyclone separator. , the exhaust gas is discharged by the exhaust fan, and the powder is collected by the pollination tube located at the lower end of the cyclone separator. The fan outlet can also be equipped with a secondary dust removal device, and the recovery rate is above 96-98%.

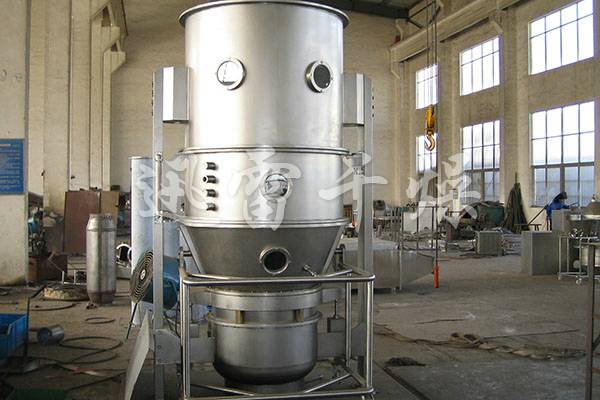

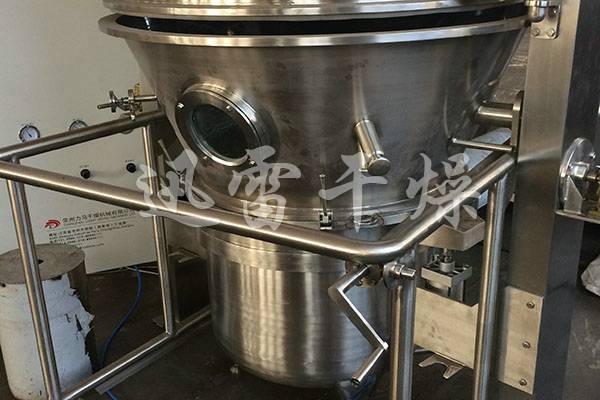

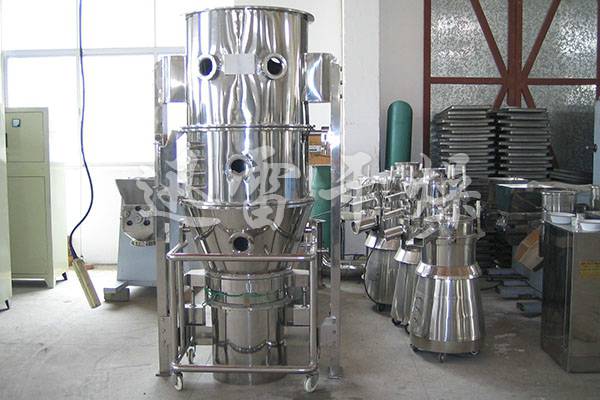

The materials of the tower body, pipes and separators of this unit that are in contact with the material are all made of SUS304. There is a sufficient moisture-retaining layer between the interior of the tower body and the outer shell, and the filling material is ultra-fine glass wool. The tower body is equipped with observation doors, sight glasses, light sources and control instruments, which are controlled and displayed by the electrical control console.

Product application

Pharmaceutical industry: tablets, granules, capsule granules; low-sugar and sugar-free proprietary Chinese medicine granules; Food: cocoa, coffee, milk powder, granulated juice, condiments, etc.; Other industries: pesticides, feeds, fertilizers, pigments, dyes wait.

Product Features

1. Fast drying speed. The surface area of the material liquid is greatly increased after atomization. In the hot air flow, 95%-98% of the water can be evaporated in an instant. It only takes a dozen to tens of seconds to complete drying. , especially suitable for drying heat-sensitive materials.
2. All products are spherical particles with uniform particle size, good fluidity, good solubility, high product purity and good quality.
3. It has a wide range of uses. According to the characteristics of the material, it can be dried with hot air or granulated with cold air. It has strong adaptability to the material.
4. The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.

Technical parameters
