Description:

In a dispersion in which solids and liquids coexist and are dominated by solids, the self-viscosity of the dispersion is used.

Category:

Granulating Coating Dryer

Detailed Description:

Overview:

In a dispersion in which solids and liquids coexist and are dominated by solids, the self-viscosity (or external adhesion) of the dispersion is used to use forced methods (such as extrusion, gravity, centrifugal force, mechanical force, air flow impulse, etc.) The basic particles of solid powder are bonded to each other, enlarged, and formed into a uniform and concentrated particle group with a certain shape and particle size. The wet granulation complete set is mainly composed of mixing (kneading), granulation, drying and its auxiliary system equipment. After the powder is mixed (kneaded), it enters the granulator to form a moist product with the required particle size, and is dried to obtain a granular finished product, thereby achieving the purpose of granulation.

Features:

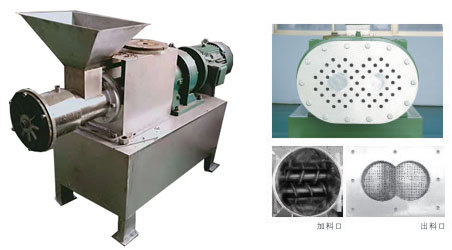

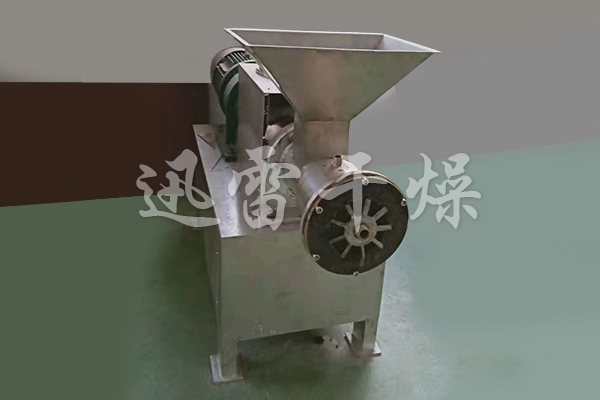

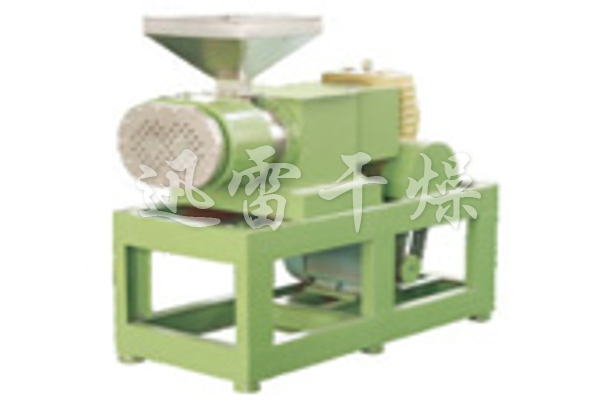

SET series twin-screw extruder granulators are divided into front discharge type and side discharge type. The granulation diameter of the front discharge type is generally selected between 1.5-12mm, and the granulation diameter of the side discharge type is generally 0.7- Choose between 2.0mm, the particle shape is cylindrical, and the granulation rate is ≥95%.

Technical parameter table:
