Description:

GFZL series dry powder granulator is our company's product based on the needs of users, after absorbing foreign powder granulation.

Category:

Granulation coating dryer

Detailed description:

Overview:

GFZL series dry powder granulator is a new type of granulation equipment carefully developed by our company based on user needs and absorbing foreign powder granulation technology. This equipment can Powder raw materials are directly made into granular products that meet user requirements without adding any intermediates and additives. The granulated products have uniform particle size and significantly increased bulk density. At the same time, pollution can be effectively controlled and powder waste reduced. With scientific design, compact structure, simple process and easy operation, it is an ideal choice for granulating your powder products.

Working principle:

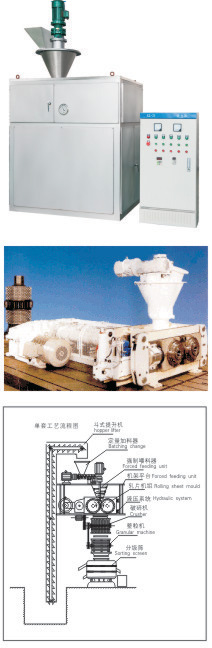

The powdery material is quantified from the vibrating hopper through the transverse spiral feeder, and is evenly added to the main flake rolling hopper to maintain a constant amount of material particles in the main flake rolling hopper. The powder is pre-compressed and transported to the arc-shaped grooves of the two pressure rollers. Semi-oblate arc grooves or diamond-shaped grooves with the same shape are evenly distributed on the surfaces of the two pressure rollers. They are driven by the meshing of a pair of gears. The two pressure rollers rotate at the same speed and in opposite directions, biting the material transported to the slot by the conical spiral into the slot and forcing it to be compressed instantly. After the material is compressed, as the pressure gradually decreases, under the action of its elasticity and gravity, the material flows out of the slot. It falls off and enters the crushing and granulating system, and then is screened and classified according to the user's particle size requirements to obtain uniform granular products that meet quality requirements. The powder that falls off the screen is returned to the vibrating hopper for recycling.

Features:

● No additives required, dry powder can be directly granulated.
● The strength of the granules can be adjusted, and the strength of the finished product can be controlled by adjusting the pressure of the pressure roller.
● Cycle operation to achieve continuous production.
● High output of finished products, single machine output can reach more than 2000kg/h (packing density 1.5×103kg/m3)

Application:

petrochemical industry, bioengineering, metal powder, fine chemicals, medicine, food, pesticides, fertilizers, minerals, coal.

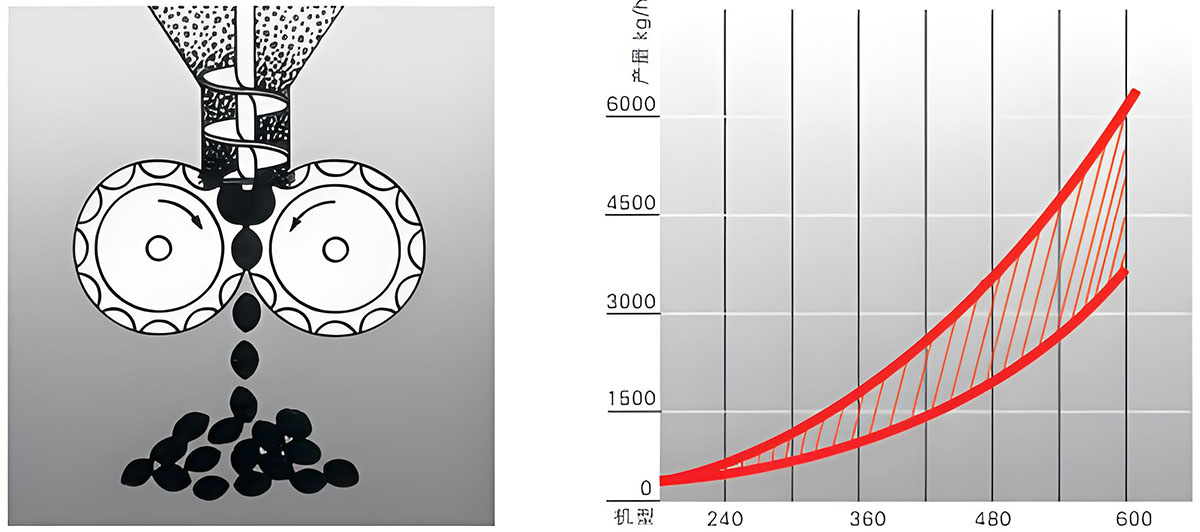

During the briquetting process, granular materials are compacted between two counter-rotating rollers, and a binder can be used for the briquettes.

Technical parameter table:
