Describe:
The MC-II square pulse bag filter is an improved and modified version of the MC-I model
Category:
Auxiliary equipment series
Overview:
The MC-II square pulse bag filter is an improved and modified version of the MC-I type. In addition to its high dust removal efficiency, large air processing capacity, stable performance, and easy operation and maintenance, it also has better performance than the I type, less powder accumulation, and a wide range of applications. It is widely used for ventilation dust removal and dust recovery in industries such as grain and food, feed, metallurgy and chemical industry, building materials, and medicine.

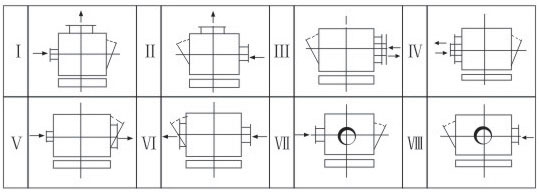

Assembly type:
Technical parameters:
| Parameters/Model | MC24 | MC36 | MC48 | MC60 | MC72 | MC84 | MC96 | MC120 | |
| Filter area(m2) | 18 | 27 | 36 | 45 | 54 | 63 | 72 | 90 | |
| Number of filter bags(only) | 24 | 36 | 48 | 60 | 72 | 84 | 96 | 120 | |
| Filtration wind speed(L/m2.s) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 | |
| Filtered air volume(m3/h) | 1300-2600 | 1950-3900 | 2600-5200 | 3240-6480 | 3900-7800 | 4550-9100 | 5200-10500 | 6500-13000 | |
| Overall dimensions(mm) | long L | 1000 | 1400 | 1800 | 2200 | 2600 | 3000 | 3560 | 4360 |
Width×Height W×H | 1450×3700 | 1450×3660 | 1450×4100 | ||||||
| Dust cleaning device | Pulse valve quantity | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
| Compressed air consumption(m3) | 0.07-0.30 | 0.11-0.40 | 0.15-0.50 | 0.18-0.60 | 0.22-0.60 | 0.25-0.90 | 0.29-0.90 | 0.37-0.90 | |
| Compressed air pressure(kg/cm2) | 5-7 | ||||||||
| Parameters Model | MC48 | MC60 | MC72 | MC84 | MC96 | MC108 | MC120 |
| A | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 |
| B | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 |
| C | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 |
| D | 1160 | 2260 | 1160 | 1160 | 1160 | 1160 | 1160 |
| E | 1350 | 1650 | 1950 | 2250 | 1350 | 2850 | 3150 |
| F | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| G | 635 | 635 | 635 | 635 | 635 | 635 | 635 |
| H | 325 | 475 | 625 | 775 | 925 | 1075 | 1225 |
| I | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 | 1486 |
| J | 790 | 790 | 790 | 790 | 850 | 850 | 850 |
| K | 824 | 824 | 824 | 824 | 880 | 880 | 880 |
| M×N | 400×500 | 500×500 | 600×500 | 700×600 | 700×600 | 800×600 | 800×600 |
| P×Q | 432×530 | 530×530 | 630×530 | 728×630 | 728×630 | 832×630 | 832×630 |
| R×S | 1050×1050 | 1350×1050 | 1650×1050 | 1950×1050 | 2250×1050 | 2250×1050 | 2850×1050 |
