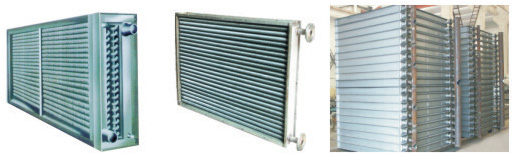

SQR spiral fin radiator, mainly used for air heating in drying systems
Category:
Auxiliary equipment series
Detailed explanation:
Principle:
SQR spiral fin radiator is mainly used for air heating in drying systems and is the main equipment in hot air devices. The heat medium used in the radiator can be steam or hot water, or thermal oil. The working pressure of steam generally does not exceed 0.8 MPa, and the temperature of hot air is below 150 ℃.
Technical parameters:
| Model | Heat exchanger | Heat exchange area(m2) | Overall dimensions(mm) | ||
| Specification | Length(mm) | Quantity(root) | |||
| SQR5×5D | φ18×2 | 512 | 32 | 10 | 580×580×180 |
| SQR6×6D | φ18×2 | 612 | 41 | 15 | 680×680×180 |
| SQR7×7D | φ18×2 | 712 | 47 | 20 | 780×780×180 |
| SQR10×5D | φ18×2 | 1012 | 32 | 20 | 1080×580×180 |
| SQR10×6D | φ18×2 | 1012 | 41 | 25 | 1080×680×180 |
| SQR12×6D | φ18×2 | 1212 | 41 | 31 | 1280×680×180 |
| SQR15×6D | φ18×2 | 1512 | 41 | 38 | 1580×680×180 |
| SQR10×7D | φ18×2 | 1012 | 47 | 28 | 1080×780×180 |
| SQR12×7D | φ18×2 | 1212 | 47 | 36 | 1280×780×180 |
| SQR15×7D | φ18×2 | 1512 | 47 | 42 | 1580×780×180 |
| SQR15×10D | φ18×2 | 1512 | 68 | 62 | 1580×1080×180 |
| SQR20×10D | φ18×2 | 2012 | 68 | 85 | 2080×1080×180 |
