Description:

The compound motion of materials within the cone is generated by the rotation and self-rotation of the spiral, mainly resulting in four types of motion.

Category:

Mixed equipment series

Detailed description:

Overview:

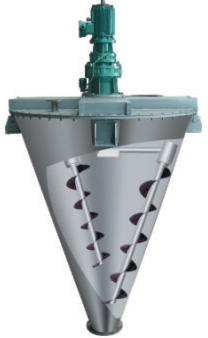

The compound motion of materials within the cone is generated by the rotation and self-rotation of the spiral, primarily resulting in four types of motion:

1. The spiral revolves around the wall, causing the material to make circular motion along the conical wall;

2. The spiral rotation causes the material to ascend along the spiral from the conical bottom;

3. The combined motion of the spiral's revolution and rotation causes a portion of the material to be absorbed into the spiral cylindrical surface, while simultaneously, the centrifugal force resulting from the spiral's rotation forces a portion of the material within the spiral cylindrical surface to radially discharge towards the cone;

4. The ascending material descends due to its own gravitational force. The four types of motion within the mixer generate convection, shear, and diffusion, thereby achieving the goal of rapid and uniform mixing.

Features:

● A flying knife and spray atomization assembly can be added to meet special process requirements.
● The discharge valve offers both manual and pneumatic options.
● For special materials, the motor power can be increased (for heavy-duty applications).

Application:

It is applied to the mixing, reaction, drying, and cooling of powder-powder (solid-solid), powder-liquid (solid-liquid), and liquid-liquid (liquid-liquid) mixtures in the chemical, pharmaceutical, pesticide, dye, petroleum, metallurgy, and building materials industries.

Technical parameters:
