Performance characteristics

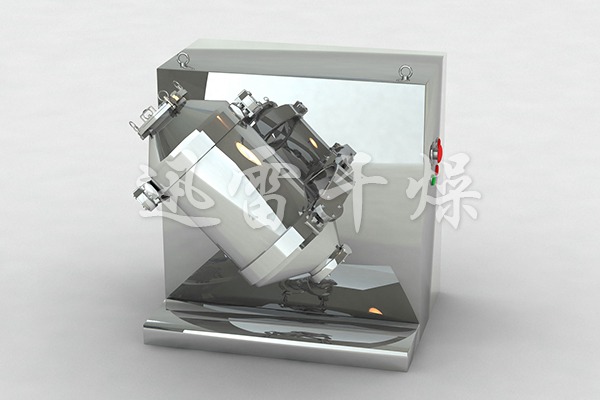

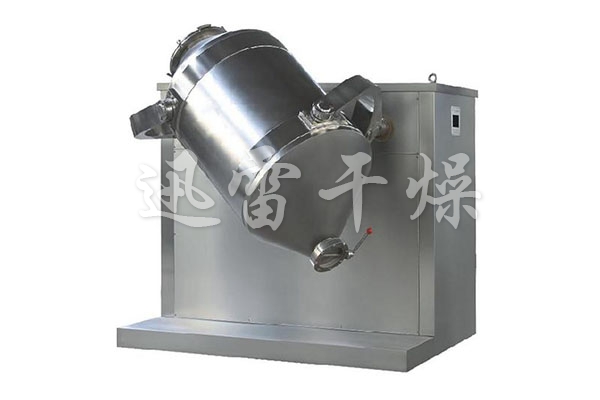

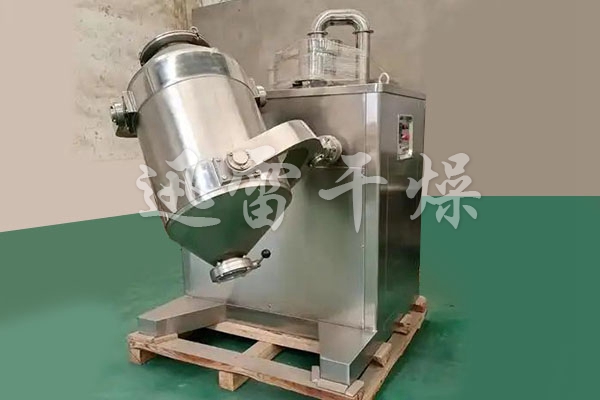

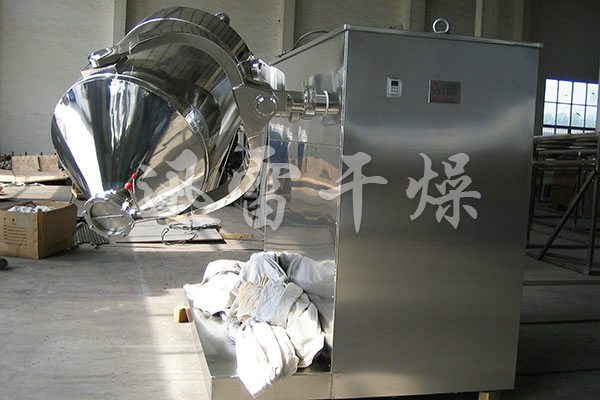

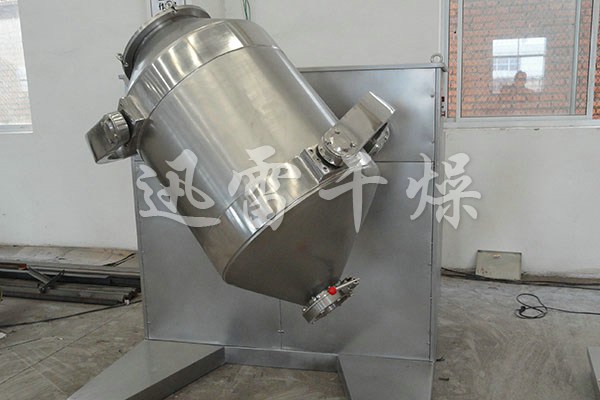

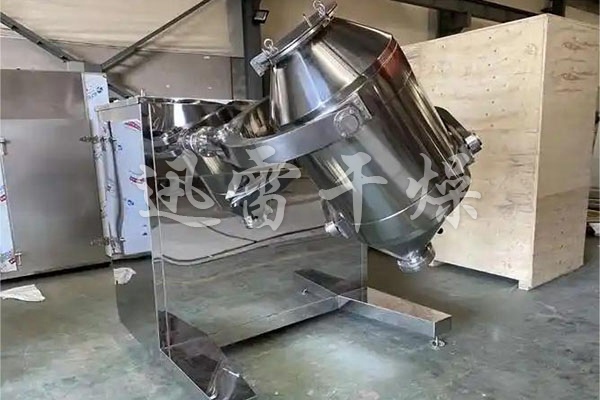

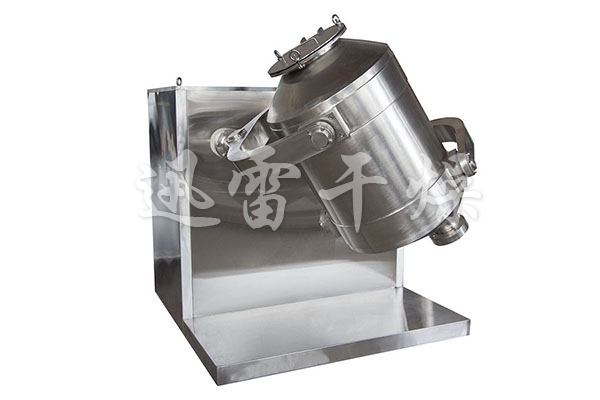

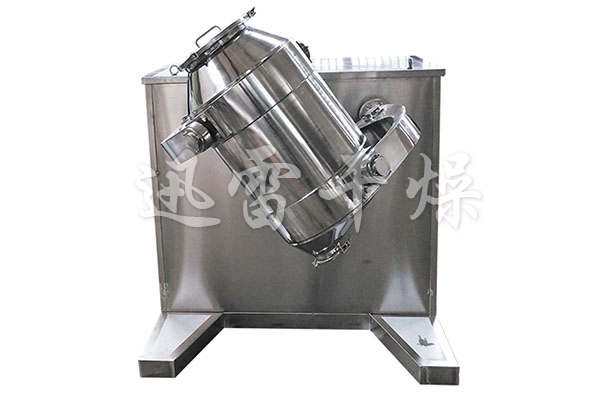

The charging cylinder, driven by the driving shaft, performs complex motions such as translation, rotation, and tumbling in a repetitive manner, prompting the material to undergo three-dimensional compound motion along the cylinder. This facilitates the mutual flow, diffusion, accumulation, and blending of various materials, achieving the goal of uniform mixing.
Adapt to materials
◎ This machine features multi-directional movement of the mixing cylinder, eliminating the effects of centrifugal force on the material. As a result, there is no segregation, stratification, or accumulation based on specific gravity, allowing for a wide range of weight ratios among components and achieving a high mixing efficiency. It stands out as an ideal product among various mixers currently available.
◎ The cylinder has a high loading rate, reaching up to 90% (compared to only 50% for ordinary mixers), offering high efficiency and short mixing times.
◎ The cylinder is designed with rounded transitions at various points and undergoes precision polishing.
◎ It is suitable for high-uniformity mixing of powdered and granular materials in the pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, defense industry, as well as various research institutions.
Technical specifications
| Model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
| Barrel volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Charging volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Loading weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| Spindle speed(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Dimensions(mm) | 600× 1000× 1000 | 800× 1200× 1000 | 1150× 1400× 1000 | 1250× 1800× 1550 | 1450× 2000× 1550 | 1650× 2200× 1550 | 1850× 2500× 1750 | 2100× 2650× 2000 | 2150× 2800× 2100 | 2000× 3000× 2260 | 2300× 3200× 2500 | 2500× 3500× 2800 |
| Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
Note: The specific gravity of material accumulation is based on 0.6g/cm3 If it exceeds, please indicate it when ordering.
