Description:
This machine is suitable for mixing two or more types of dry powder and granular materials in the pharmaceutical, chemical, food, and other industries.
Category:
Mixed equipment series
Detailed explanation:
Overview:
This machine is suitable for mixing two or more types of dry powder and granular materials in the pharmaceutical, chemical, food, and other industries.
The mixing cylinder of this machine features a unique structure, high mixing efficiency, and no dead spaces. Made of stainless steel, with polished inner and outer walls, it boasts an aesthetically pleasing appearance and achieves even mixing. It has a wide range of applications and can be equipped with a forced mixer according to user requirements, suitable for mixing finer powders, granular materials, and materials containing a certain amount of moisture.

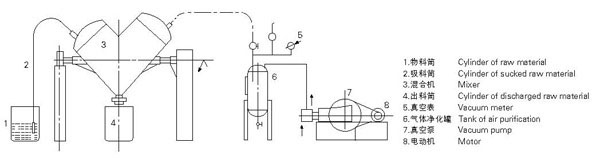

Structural schematic diagram:
Technical parameter table
Model | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6.0 |
Production capacity(kg/time) | 90 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
Equipped with vacuum pump model | W2 | W2 | W2 or SK-1.5 | W3 or SK-3 | W3 or SK-3 | W3 or SK-3 | W3 or SK-6 | W4 or SK-6 | W4 or SK-9 | W4 or SK-9 | W4 or SK-12 |
Feeding time(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
Full volume(m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
Stirring speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
Rotation height(mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
