Structure principle and function:

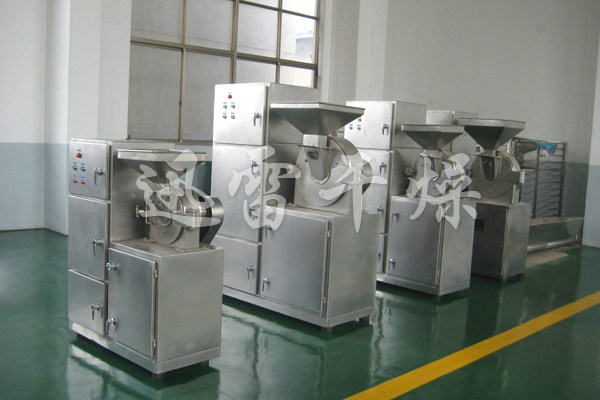

This crushing unit consists of a crusher, an ESC material collection box, and an ESC vacuum cleaner. Resolve the issue of dust flying during the crushing process of materials. The working principle of this machine is that the material enters the crushing chamber and is crushed by the impact, shear, friction, and mutual impact of the teeth between the high-speed rotating movable and fixed toothed discs. After being screened by a sieve, it becomes the required powder. The crusher, material collection box, and vacuum cleaner of this crushing unit are all made of stainless steel materials. Meets the requirements of "GMP" for drug production.
Category:
Crushing equipment series
Technical parameter table:
| Model | 20B-C | 30B-C | 40B-C | 60B-C |
| Production capacity(kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed(r.p.m) | 4500 | 3800 | 3400 | 2800 |
| Feed particle size(mm) | 6 | 10 | 12 | 15 |
| Finished product fineness(mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
| Motor power(kw) | 4 | 5.5 | 11 | 15 |
| Vacuum suction fan(kw) | 1.5 | 1.5 | 1.5 | 2.2 |
| Overall dimensions(L*W*H)mm | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
