Description:

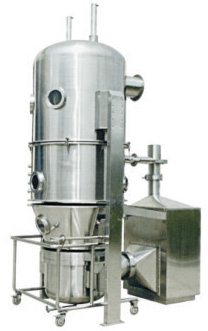

PGL-B spray drying granulator is suitable for preparing granules, capsules, tablets or coating granules of Chinese patent medicines.
Category:
Granulating Coating Dryer
Detailed description:
Overview:
PGL-B spray drying granulator is suitable for preparing granules, capsules, tablets or coating granules of Chinese patent medicines.
Features:
● Multi-fluid atomizer, more suitable for products with polysaccharide ingredients, strong viscosity or heat sensitivity.
● After important modifications have been made to the spray drying chamber, collection chamber, fluidized bed and secondary air supply system, the spray drying characteristics can be more appropriately demonstrated. ● Design, manufacture and layout in accordance with "GMP" requirements.
● Realize continuous extract spray process.
● Easy to operate and reliable.
● Improve spray drying efficiency.
● It is more stable than FL type fluidization, improves fluidization drying intensity, and overcomes the "dead bed" phenomenon.
Technical parameter table:
Project | Specification | 3 | 5 | 10 | 20 | 30 | 40 | 80 | 120 | 150 |
Raw material volume | L | 26 | 50 | 100 | 220 | 300 | 420 | 670 | 1000 | 1500 |
Liquid supply volume | kg/h | 2-4 | 4-6 | 6-15 | 15-25 | 20-40 | 30-60 | 60-100 | 20-160 | 100-200 |
Liquid specific gravity | kg/L | ≤1.3 | ||||||||
Steam volume(0.6Mpa) | kg/h | 25 | 50 | 120 | 160 | 240 | 280 | 300 | 380 | 465 |
Auxiliary fan | m3/min | 0.4 | 0.6 | 0.9 | 0.9 | 1.1 | 1.1 | 1.3 | 1.6 | 1.8 |
Main fan | Kw | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | |
Host size | Kw | 3 | 4 | 7.5 | 11 | 18.5 | 18.5 | 22 | 30 | 37 |
H1(mm) | 1900 | 2360 | 2680 | 3150 | 3630 | 3630 | 4120 | 5050 | 5400 | |
H2(mm) | 190 | 260 | 340 | 490 | 540 | 590 | 690 | 990 | ||
H3(mm) | 1680 | 2140 | 2460 | 2930 | 3410 | 3410 | 3900 | 4830 | 5180 | |
φ1(mm) | 400 | 550 | 700 | 1000 | 1100 | 1200 | 1400 | 1800 | 2000 | |
φ2(mm) | 150 | 180 | 180 | 250 | 280 | 280 | 315 | 355 | ||
B(mm) | 860 | 1010 | 1160 | 1460 | 1560 | 1660 | 1860 | 2260 | 2460 | |
L(mm) | 1050 | 1050 | 1250 | 1400 | 1450 | 1500 | 1600 | 1800 | 2000 | |
All dimensions are for reference only. Depending on material conditions, our company has the right to change without prior notice. | ||||||||||
