316L stainless steel turnover hopper, square conical mobile hopper, turnover hopper, turnover hopper, sealed dust-free square conical temporary storage transfer hopper, stainless steel square mobile turnover hopper, square mobile hopper, square turnover hopper, powder transfer tank, mobile material cart, powder turnover tank, stainless steel conical hopper, stainless steel hopper cart.

Principle:

The turnover hopper is the main turnover container in the solid preparation production process. Materials can be used for different purposes in the same container, achieving frequent processes such as no material transfer or addition, effectively preventing dust and cross contamination. Fully comply with the GMP requirements for drug production.

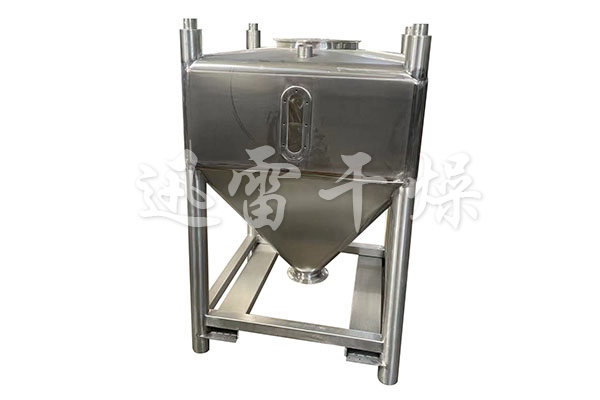

The square rounded powder mobile silo (powder turnover hopper/powder turnover tank) is used for sealed temporary storage and powder turnover. The powder storage is safe, moisture resistant, and effectively prevents dust pollution. It is suitable for powder industries such as pharmaceuticals, food, energy, plastics, and chemicals.

Material: stainless steel 304 or 316L, capacity: 50L, 100L, 200L, 300L, 500L, 600L, 800L, 1000L, 1200L, 1500L, 2000L, etc.

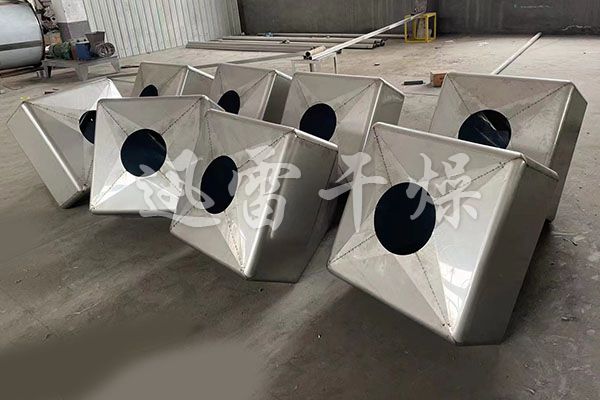

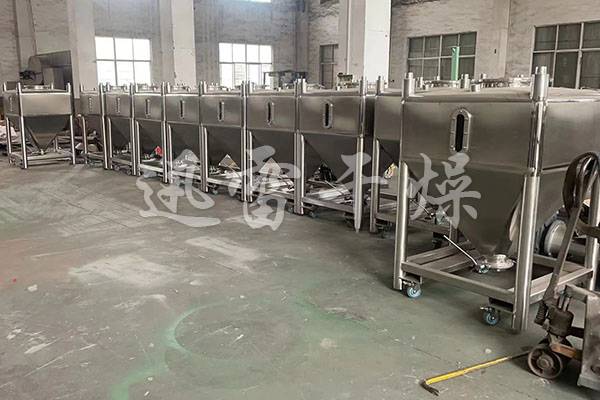

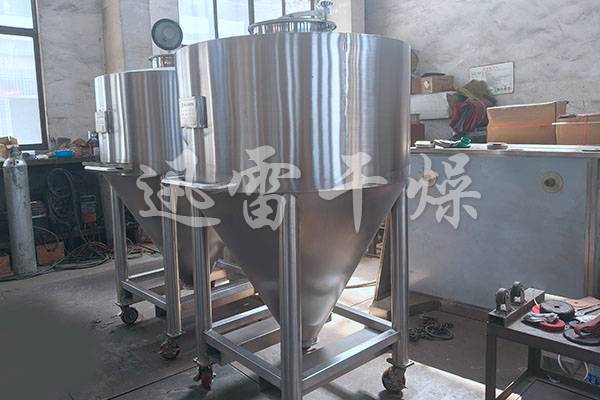

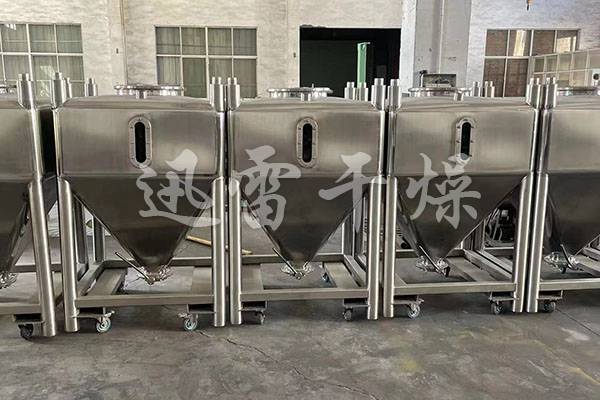

The structural forms of turnover hoppers include circular structure and square structure (commonly known as sky circle and earth structure). Suitable for powder industries such as pharmaceuticals, food, energy, plastics, and chemicals, the diverse structural types meet the user's usage requirements.

Equipped with quick opening clamp sealing bucket cover, 4 PU casters that do not wear the ground, easy to move with low noise, mirror polished inner surface without cleaning dead corners, large cone bottom design+large-diameter powder discharge valve (or equipped with vacuum discharge device), smooth discharge.

Equipment features:

1. Made of stainless steel 304 or 316L.

2. All corners have rounded transitions with no dead corners, making it easy for the powder to flow, easy to clean, and aesthetically pleasing.

3. Adopting sheet metal technology and weld seam welding treatment technology, the inner surface is mirror polished (roughness Ra ≤ 0.2-0.28 μ m) and the outer surface is matte treated.

4. The clamp type bucket cover quick lock structure formed by stamping is easy to open, equipped with pharmaceutical grade white silicone sealing ring, with good sealing performance.

5. The specially designed large-diameter quick release butterfly valve at the bottom of the cone is easy to open and comes with a pharmaceutical grade white silicone sealing ring. It is universal, easy to disassemble, and easy to clean. The operating handle has an automatic positioning locking function, which is sensitive and accurate in opening or closing to prevent accidental operation.

6. Four PU mobile casters (including two universal with brakes) can effectively protect the self leveling ground from damage, with lightweight movement and low noise.

7. The warehouse body has sufficient strength and will not undergo deformation.

8. Mobile mode (please declare): hydraulic truck, forklift, manual.
